200G QSFP56 to QSFP56 2*100G AOC

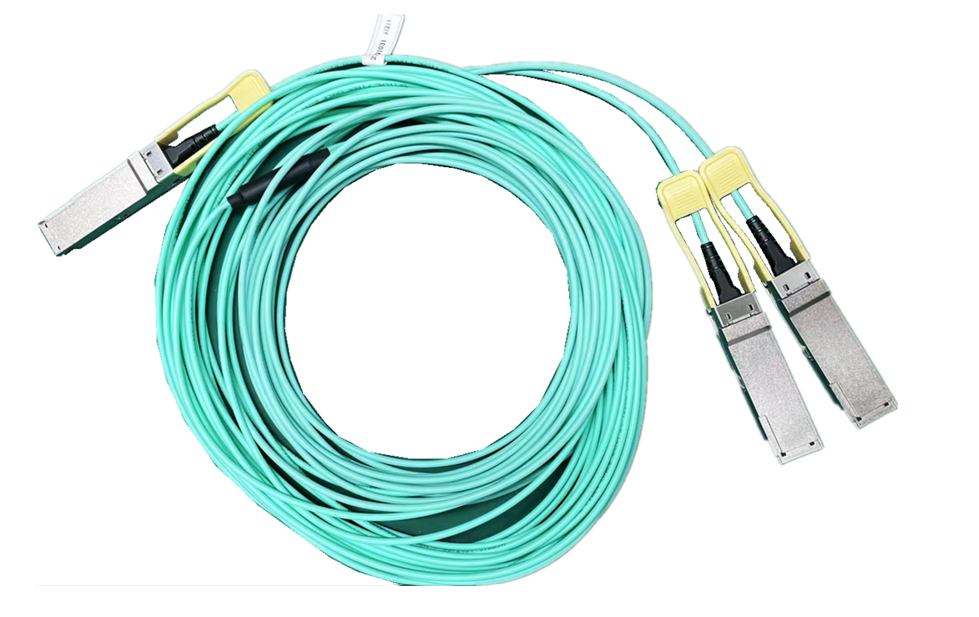

  • The ColorChip 200G QSFP56 to QSFP 2*100G AOC is 1* 4×50Gbps to 2* 2×50Gbps with multimode fiber connected each end, hot pluggable active optical cable. The module integrates four parallel lanes on 200G end and two parallel lanes on each 100G end with 26.5625GBd PAM4 modulation each lane.

Key Features

  • Active optical cable with breakout from QSFP56 200G to two QSFP56 100G
  • Up to 53.125Gbps data rate per channel PAM4 modulation
  • Integrated 850nm VCSEL array and PD array
  • DDM function implemented
  • Hot-pluggable
  • Low power dissipation: : <4W on 200G end, <3W on 100G end
  • Commercial operating case temperature range: 0℃ to 70 ℃
  • Compliant with ROHS2.0


  • Data centers and Cloud Networks
  • 200G InfiniBand  HDR systems
