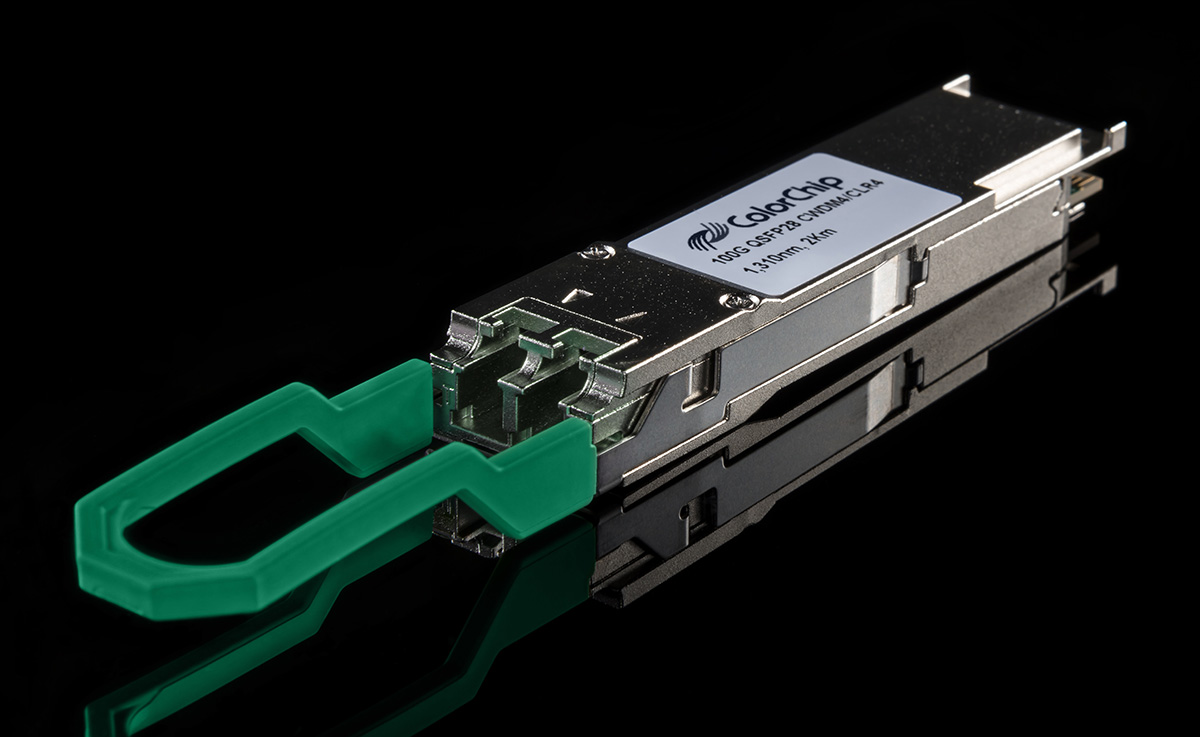

100G QSFP28 CLR4 Transceiver
Overview
100Gbps hot pluggable transceiver in QSFP28 form factor
Optical connectivity based on two SMF LC connectors
Optical engine combining uncooled 4 X 25Gbps CWDM DFB lasers with integrated MUX/DeMUX
Built in digital diagnostics – Transmitter Power Monitoring (TPM) and Receive Signal Strength Indicator (RSSI)
RoHS-6 compliant
Operating case temperature range of 0 to 70°C
Based on 100G CLR4 MSA baseline requirement
Key Features
Supports up to 100Gb/s data rate links over 2km on Single Mode Fiber (SMF)
Based on QSFP28 baseline specifications
Typical power dissipation: 2.7W
Single 3.3V power supply
Management interface complies with SFF-8636 MSA
Applications
Data Center Interconnections
100GBASE Ethernet links
100GE Enterprise switch and routers
Carrier grade 100GE core routers
Point-to-point and ring applications
100G QSFP28 CLR4 Transceiver
Code
General Specifications
Transmitter
Receiver
Wavelength
Data Rate per Lane
Supply Voltage
Typical Power Consumption
Operating Case Temperature
Reach
Outer Optical Modulation Amplitude
(OMA outer) per Lane
Extinction Ratio
Sensitivity (OMA)per Lane
(nm)
(Gb/s)
(V)
(W)
(°C)
(km)
(dBm)
(dB)
(dBm)
100G QSFP28 CLR4
1270 / 1290 / 1310 / 1330
25.78125
3.3 ± 5%
2.7
0 to 70
≤2
-4 to 2.5
>3.5
-8.1(*)
*Receiver Sensitivity (OMA), each lane (max) for BER = 1 × 10¯¹²
Request Information
Full Product Specification:
Mail to:
info@color-chip.com
Reliability Report:
Get Report
