1600G OSFP AEC

Overview

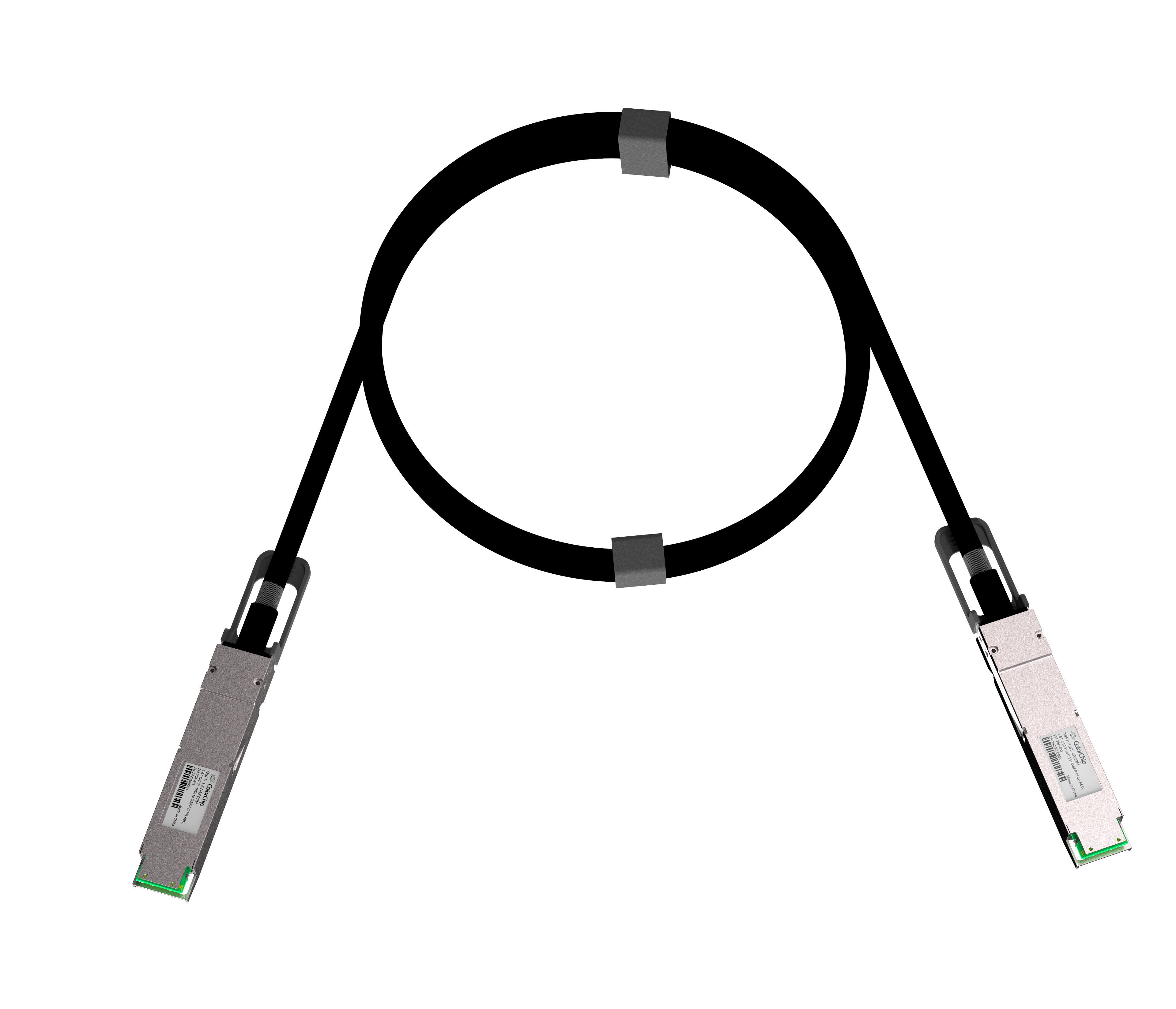

• ColorChip 1600G OSFP to OSFP AEC (Active Electrical Cable) is a high-performance, plug-and-play interconnect solution designed for ultra-high-speed data center and high-performance computing (HPC) environments. Engineered to support 1600Gbps aggregate bandwidth, this active cable enables seamless, low-latency connectivity between OSFP (Octal Small Form-factor Pluggable) equipped devices such as switches, servers, and storage systems.


Key Features

• Compliant to OSFP MSA Rev 2.0k
• Compliant to IEEE 802.3dj
• Compliant with CMIS 5.0
• RoHS 2.0 complaint
• Transmission data rate up to PAM4 212.5Gbps per channel
• BER (Pre-FEC) <1E-8 & BER (Post-FEC) <1E-15
• Customizable EEPROM mapping for cable signature
• Copper link up to max length 4.5m
• Support Integrated Heat Sink and Removable Heat Sink
• 3.3V power supply
• Supports device programming by MCU with I2C

Applications

• 1600G Ethernet Interconnect
• Infiniband Interconnect
