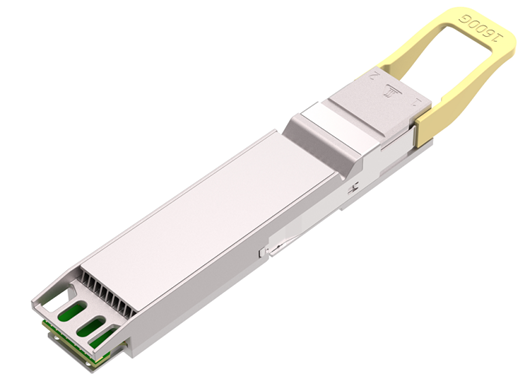

1600G OSFP IHS 2xDR4/DR8

Overview

• ColorChip 1600G OSFP RHS 2xDR4 or DR8 product are a single mode optical transceiver for an Ethernet application. SMF optical line rate is 8x200Gb/s with PAM-4 modulation. OSFP form factor provides 8-channels of 200G-PAM4 via a DSP to enhance the signal integrity and assure an error-free transmission for AI/ML and HPC optical interconnects applications.


Key Features

• OSFP MSA package of IHS
• IEEE 802.3dj_D2.0
• CMIS 4.0/5.0/5.2 compliance
• Sipho modulator-based transmitter
• Low power consumption 23W Max
• Customizable EEPROM mapping for cable signature
• Optical connectors: MPO-16/APC or 2xMPO-12/APC.
• 3.3V power supply
• RoHS compliance

Applications

• 1600G Ethernet Interconnect
• Infiniband Interconnect
• 1600Gb/s AI/ML & HPC Datacenter
