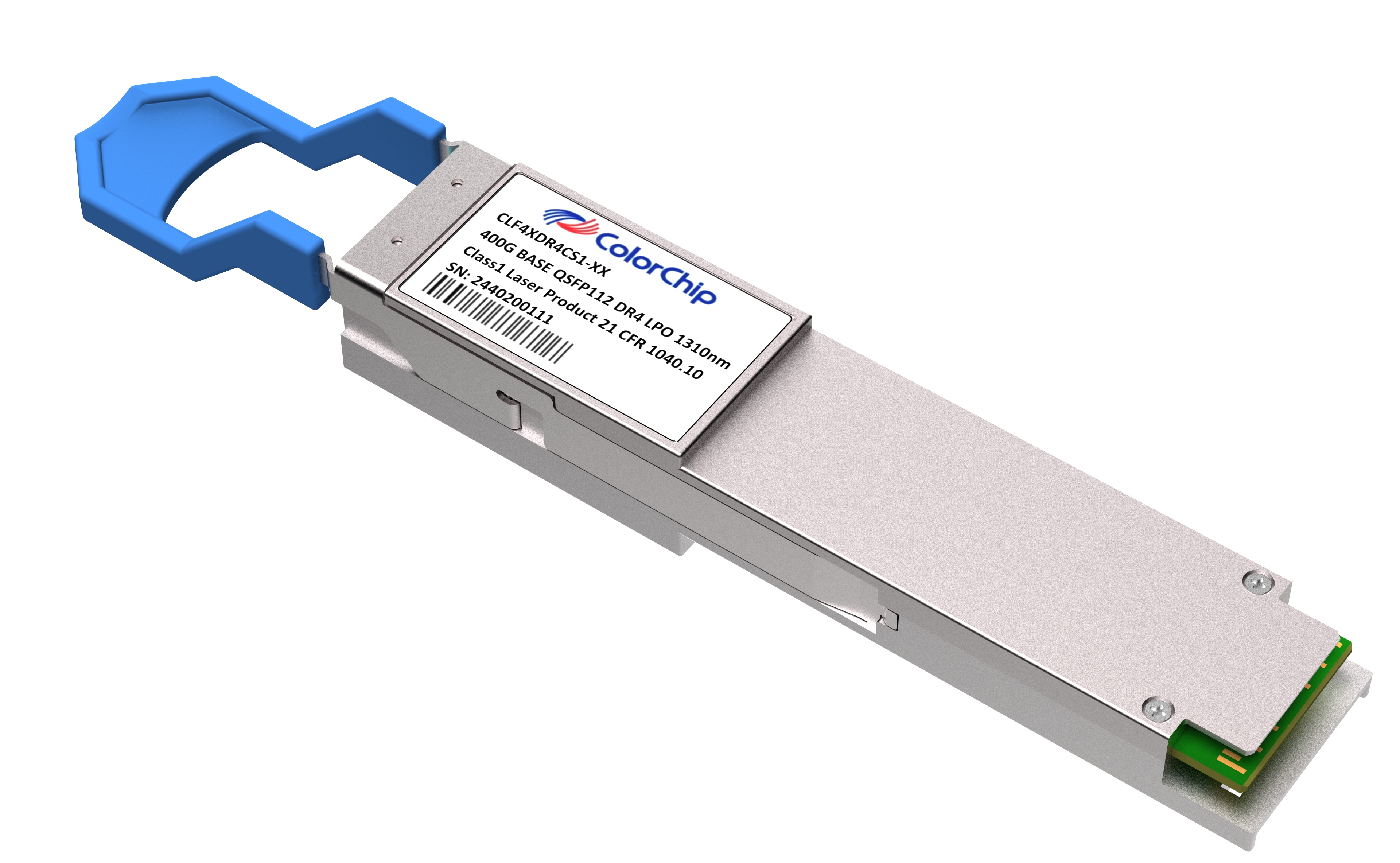

400G QSFP112 DR4 LPO

Overview

• This product is a 400Gb/s QSFP112 optical module designed for 0.5Km optical communication applications. The module converts 4 channels of 100Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s.
• On the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 4 channels of 100Gb/s (PAM4) electrical output data.
• An optical fiber cable with an MTP/MPO-12 connector can be plugged into the QSFP112 DR4 module receptacle. Host FEC is required to support up to 0.5Km fiber transmission

Key Features

• Compliant to QSFP112 MSA Rev 2.0
• Parallel 4 Optical Lanes
• IEEE 802.3bs 400GBASE-DR4 Specification compliant
• Maximum power consumption 6W
• Single 3.3V power supply
• Commercial case temperature range of 0°C to 70°C

Applications

• Ethernet
• Data Center Interconnect
• Infiniband Interconnect
• Enterprise Networking
