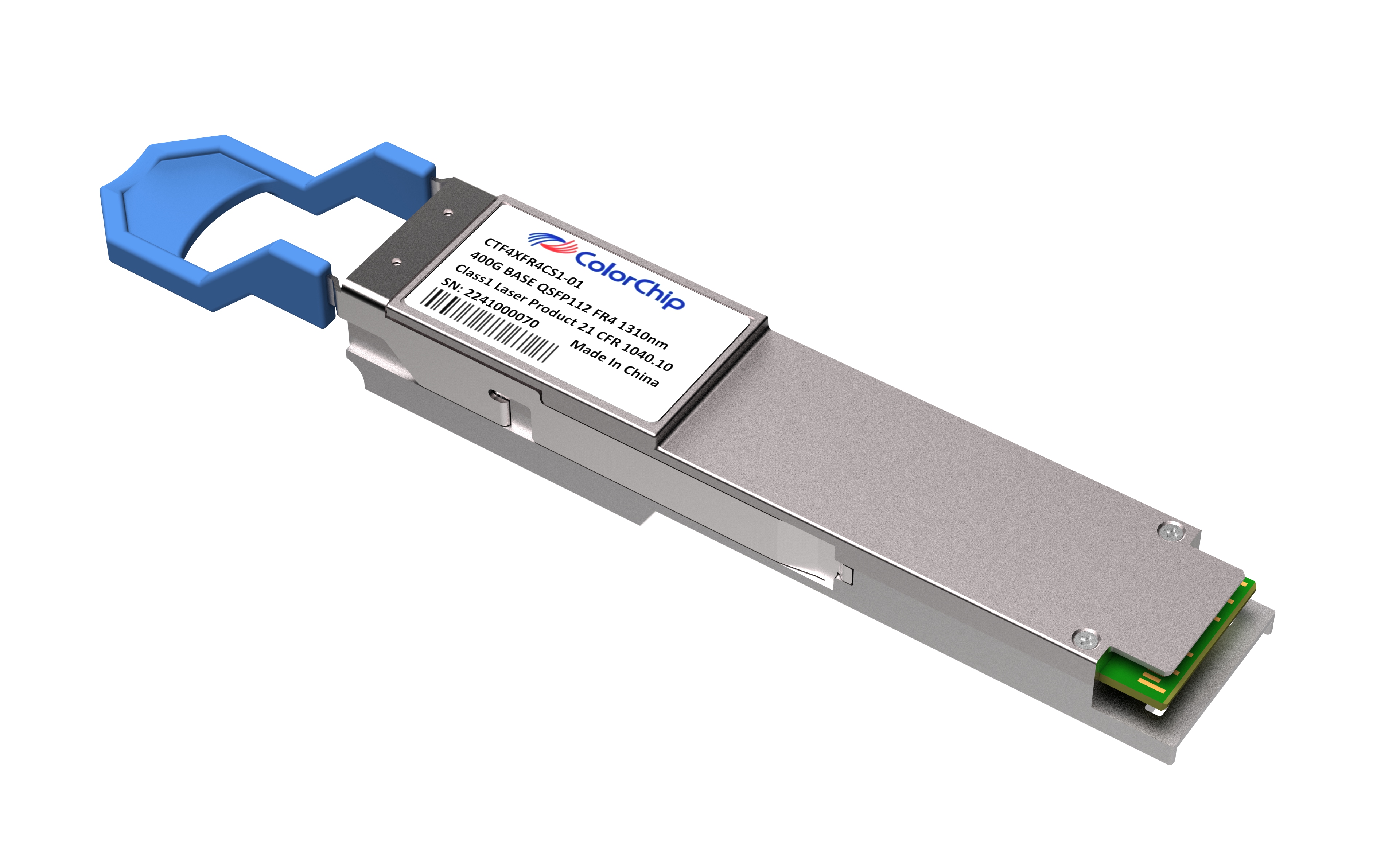

400G QSFP112 FR4

Overview

• This product is a 400Gb/s QSFP112 optical module designed for 2km optical communication applications. The module converts 4 channels of 100Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals and multiplexes them into a single channel for 400Gb/s optical transmission.
• On the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of CWDM optical signals and converts them to 4 channels of 100Gb/s (PAM4) electrical output data.
• The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm.
• Host FEC is required to support up to 2km fiber transmission.


Key Features

• Compliant to QSFP112 MSA V2.0

• Compliant with CMIS 5.1

• 4 CWDM lanes MUX/DEMUX design
• 100G Lambda MSA 400G-FR4 Specification compliant
• 4×106. 25Gb/s electrical interface (400GAUI-4)
• Up to 2Km transmission over SMF
• Maximum power consumption 10W
• Duplex LC Receptacle
• Single +3.3V power supply
• Case temperature range: 0 ~ 70℃
• RoHS 2.0 complaint

Applications

• 400G Ethernet
• Data Center Interconnect
• Infiniband Interconnect
• Enterprise Networking
