QSFP112 400G SR4 AOC

Overview

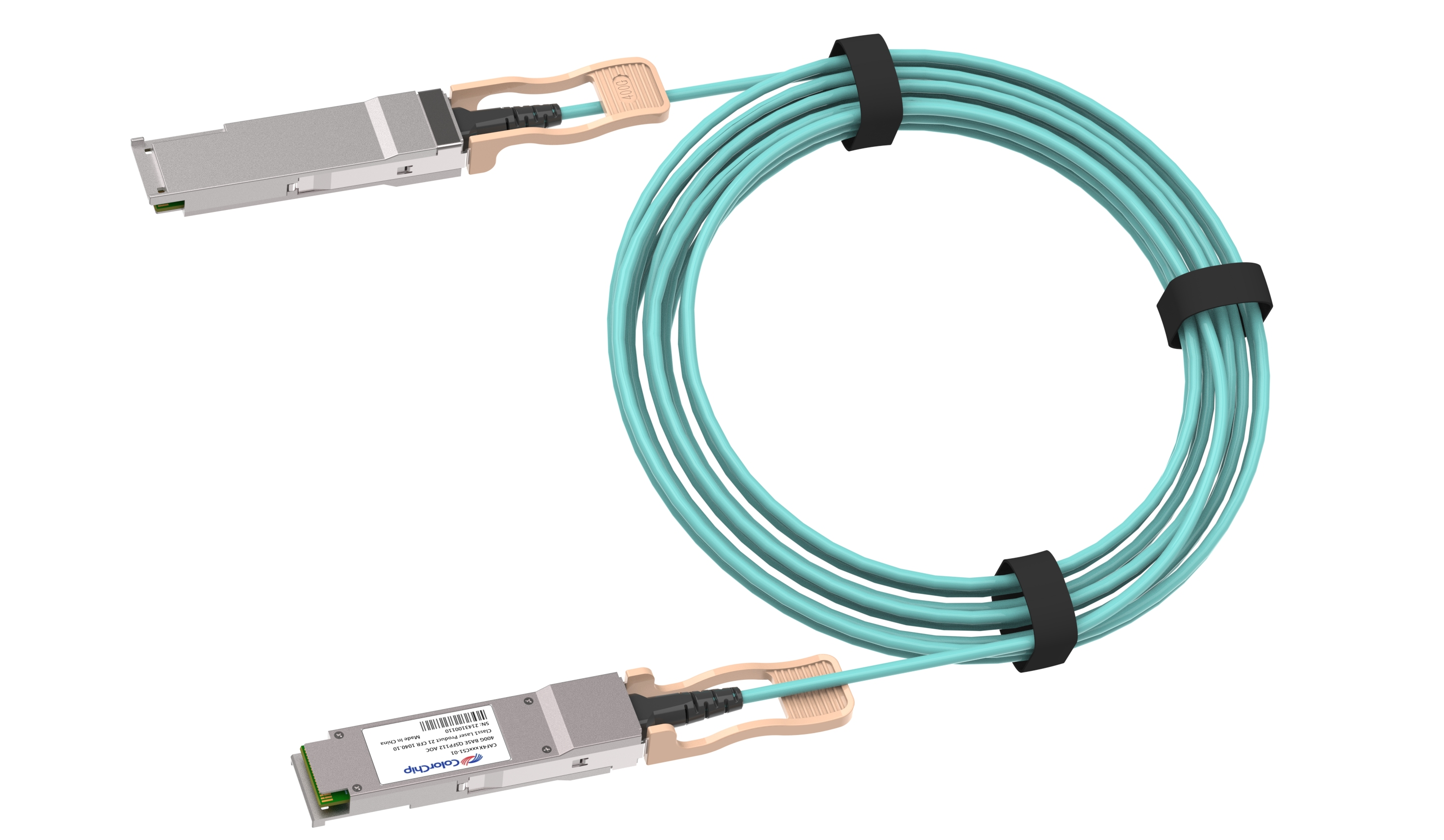

• The ColorChip 400G QSFP112 400G AOC is 2*4×100Gbps with multimode fiber connected, hot pluggable active optical cable. The either end module integrates 4 parallel lanes with 53.125GBd PAM4 modulation each lane.

Key Features

• Compliant to QSFP112 MSA V2.0
• Compliant with CMIS 4.0
• Parallel 4 Optical Lanes
• 4×106. 25Gb/s electrical interface (400GAUI-4)
• Maximum power consumption 8W
• MPO12-APC Receptacle
• Case temperature range: 0 ~ 70℃
• Single +3.3V power supply
• RoHS 2.0 complaint

Applications

• Data centers and Cloud Networks
• Ethernet/Infiniband
• Enterprise Networking
