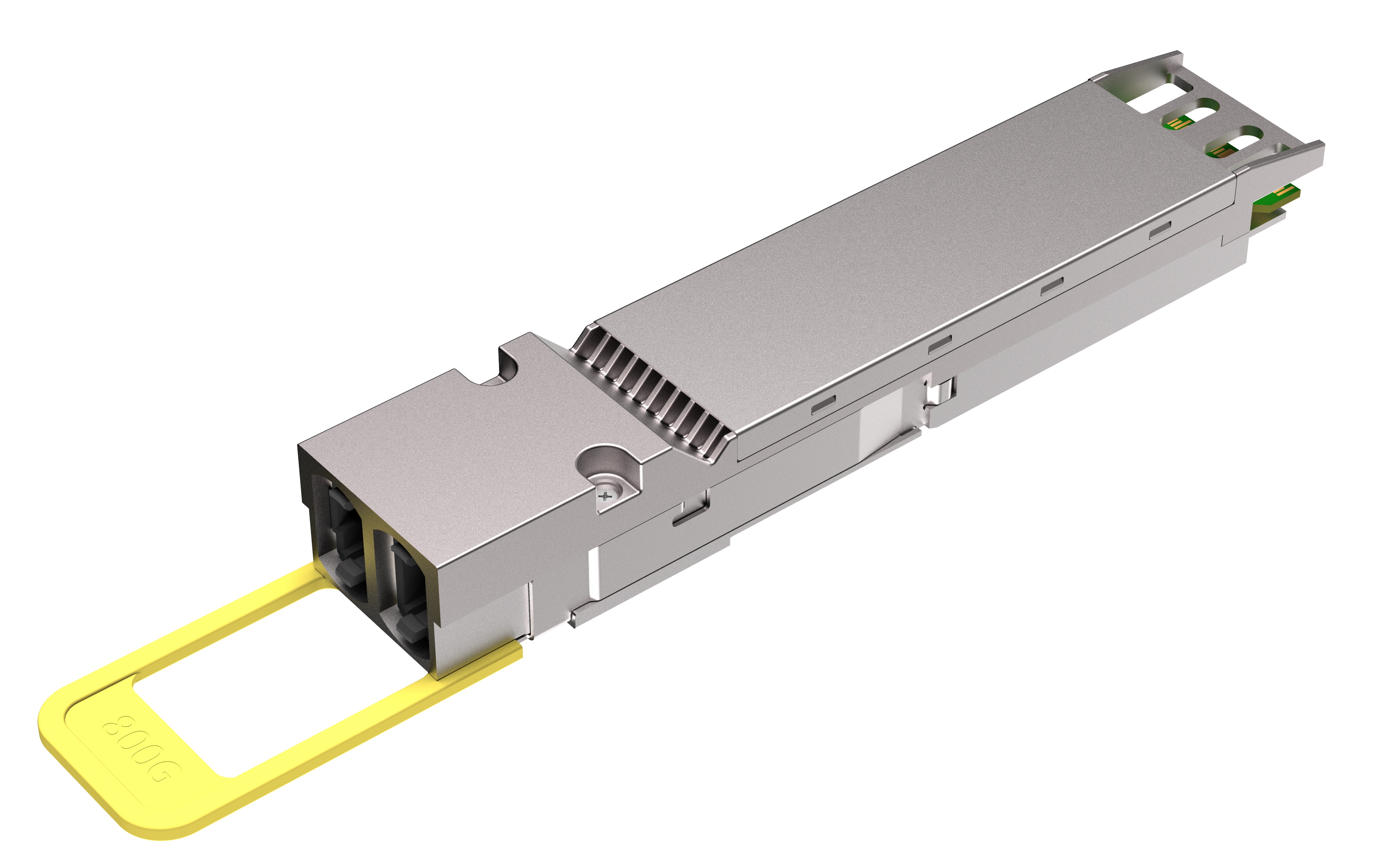

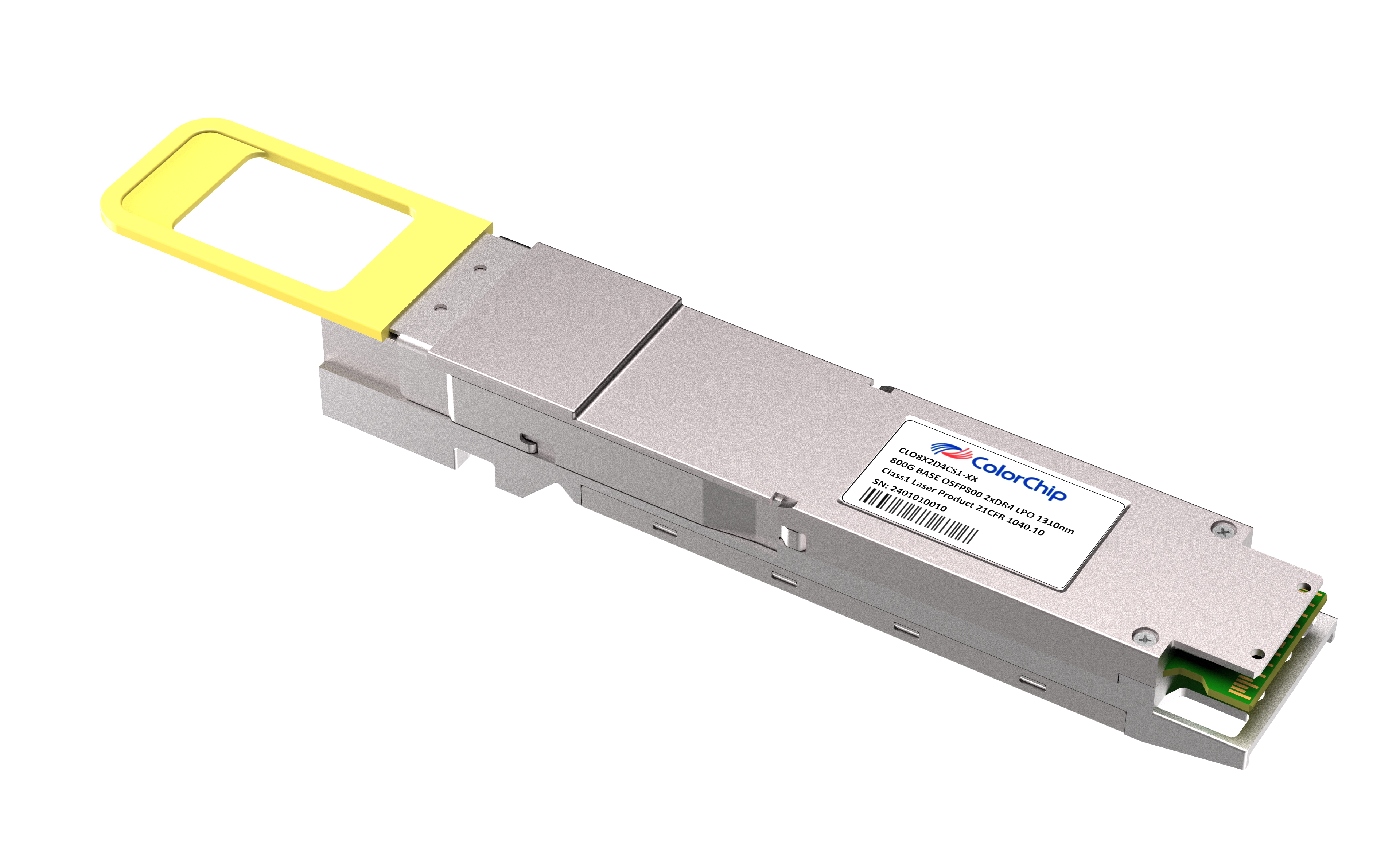

800G OSFP800 2xDR4 LPO

Overview

• This product is a 800Gb/s OSFP800 2xDR4 optical module designed for 500m optical communication applications. The module converts 8 channels of 100Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 800Gb/s.
• On the receiver side, the module converts 8 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 800Gb/s into 8 channels of 100Gb/s (PAM4) electrical output data.
• The OSFP800 2xDR4 transceiver is designed for 800GBASE Ethernet throughput up to 500m over single mode fiber (SMF) with dual MPO-12 connectors.

Key Features

• Compliant with LPO MSA 100G-DR-LPO Draft Revision 0.5 optical specifications
• Compliant with CEI-112G-LINEAR-PAM4 electrical specifications
• Compliant with CMIS Rev 4.0
• Power consumption<8W
• Hot-pluggable OSFP form factor
• Single 3.3V power supply
• Maximum link length of 500m on Single Mode Fiber (SMF)
• Commercial case temperature range of 0°C to 70°C
• Dual MPO-12 connectors
• RoHS compliant

Applications

• Ethernet
• Data Center Interconnect
