800G OSFP800 2xFR4

Overview

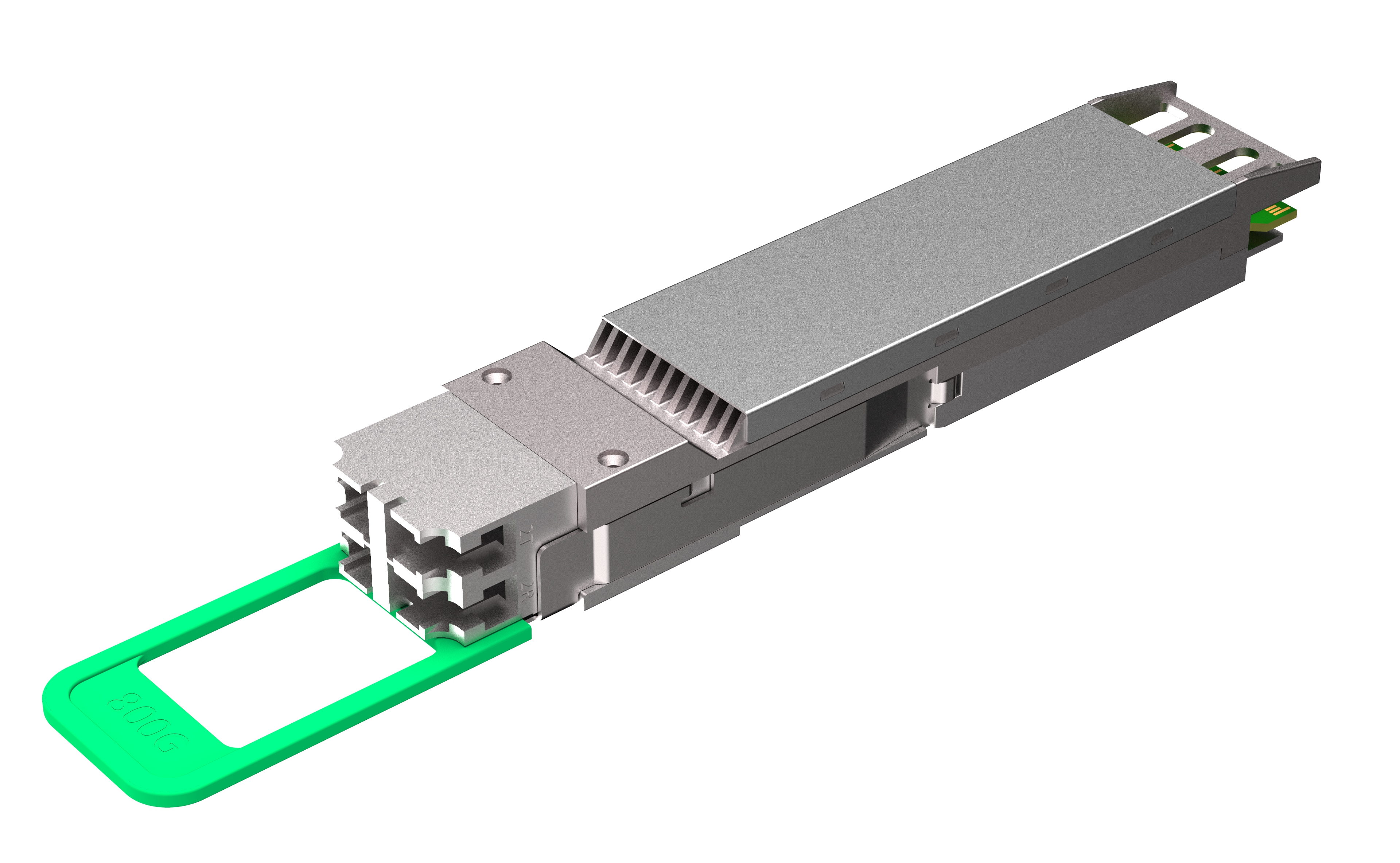

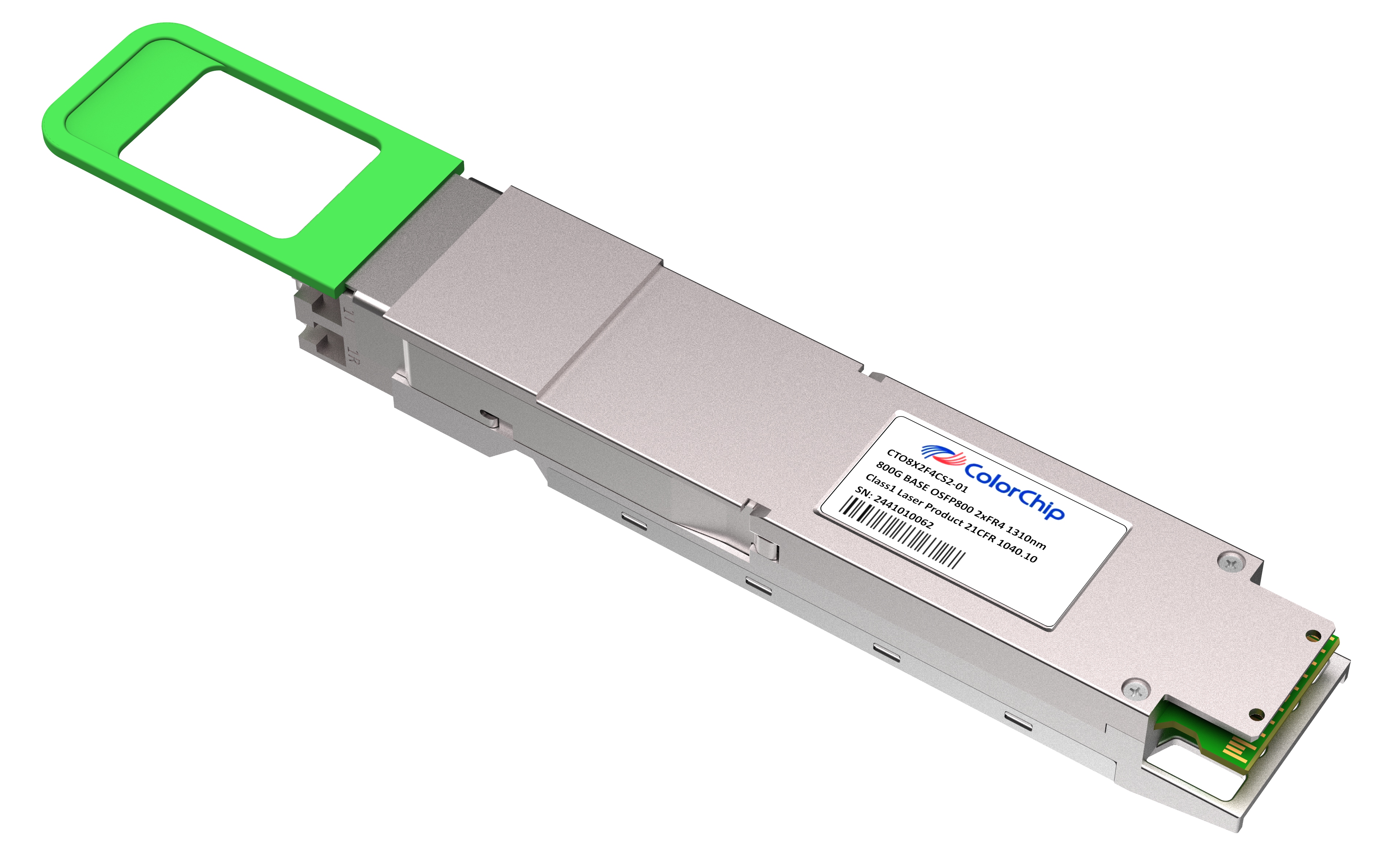

• The 800G BASE 2xFR4 OSFP Optical Transceiver Module is designed for 800GBASE Ethernet throughput up to 2km over singlemode fiber (SMF) with duplex LC connectors.
• The 800 Gigabit Ethernet signal is carried over four wavelengths at 1271, 1291, 1311, 1331 nm. This transceiver is compliant with IEE802.3ck, IEEE 802.3cu, OSFP MSA. It is suitable for 800G Ethernet, Breakout 2x 400G FR4, Data Center, Cloud Networks.

Key Features

• Hot-pluggable OSFP800 form factor
• Compliant with CMIS Rev 5.1
• Power dissipation <16W
• Commercial case temperature range of 0°C to 70°C
• 7nm DSP scheme design and Free space technology
• Single 3.3V power supply
• Maximum link length of 2km on Single Mode Fiber (SMF)
• Aligned with IEEE 802.3cu
• 8x100G PAM4 EML-based CWDM transmitter
• 8x100G PAM4 retimed 800GAUI-8 electrical interface
• Aligned with IEEE 802.3cu
• I2C management interface
• Duplex LC Receptacle
• RoHS compliant

Applications

• Ethernet/Infiniband
• Data Center Interconnect
• 2x 400GBASE-FR4
• Cloud Networks
