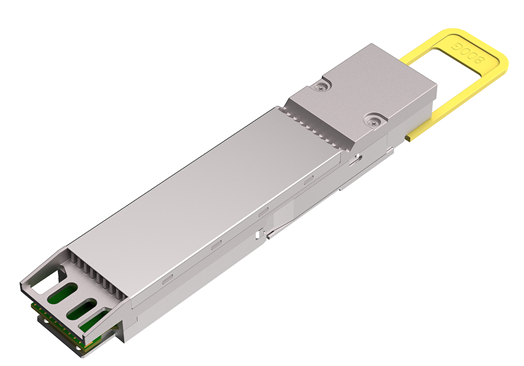

800G OSFP IHS DR4 (8:4)

Overview

• ColorChip 800G OSFP IHS DR4 (8:4) is a 800Gb/s DR4 single mode optical transceiver for an Ethernet application. SMF optical line rate is 4x200Gb/s with PAM-4 modulation. OSFP form factor provides 8-channels of 100G-PAM4 via a DSP (8:4) to enhance the signal integrity and assure an error-free transmission for AI/ML and HPC optical interconnects applications.

Key Features

• 800Gb/s AI/ML & HPC Datacenter
• 4X200G PAM4 Optical interface
• 8x100G PAM4 retimed 800GAUI-8 electrical interface<16W
• CMIS 4.0/5.0/5.2 compliance
• Sipho modulator-based transmitter
• Low power consumption 15W Max
• Optical connectors: MPO-12/APC.
• Case temperature: 0 to 70 C
• RoHS compliant

Applications

• Ethernet/Infiniband
• 800Gb/s AI/ML & HPC Datacenter
