800G OSFP to 2×OSFP ACC

Overview

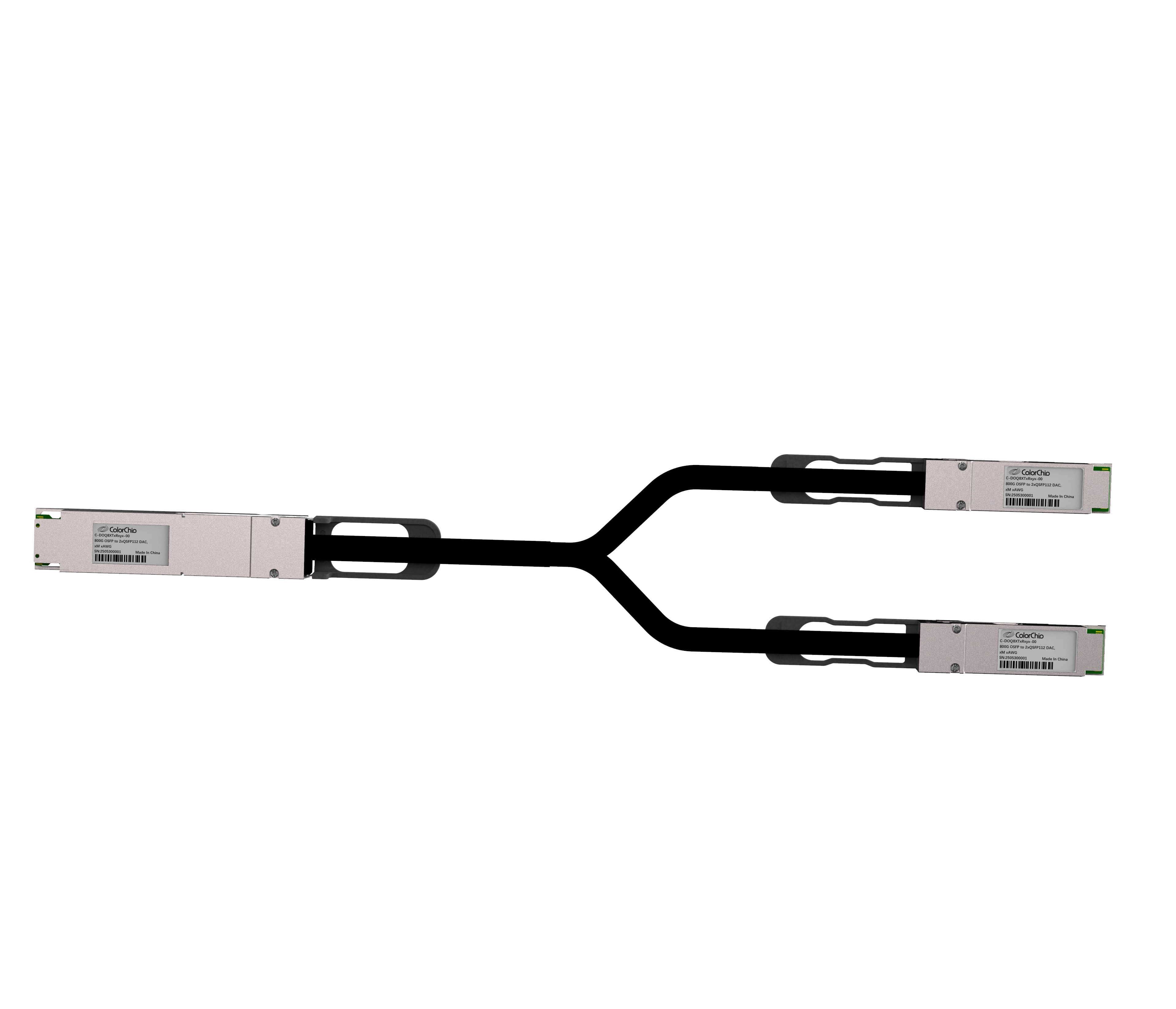

• ColorChip 800G OSFP to 2×OSFP Active Copper Cable (ACC) enables high-speed breakout connectivity from a single 800G OSFP (8×100G PAM4) interface to two independent 400G OSFP (4×100G PAM4) links.


Key Features

• Supports 800G → 2×400G breakout operation
• Based on 8×100G PAM4 to 2×(4×100G PAM4) electrical lanes
• Available as DAC (passive) or ACC (active equalized) versions
• Compliant with OSFP MSA and IEEE 802.3ck electrical interfaces
• Low insertion loss and excellent crosstalk performance
• Hot-pluggable OSFP connectors on both end
• Interoperable with major AI/ML accelerators, switches, NICs, and DCI platforms
• 26AWG and 30AWG cable
• Temperature Range: 0~ 70 °C
• 3.3V power supply

Applications

• 800G OSFP to dual 400G OSFP breakout connections
• High-speed switch-to-server and switch-to-accelerator connectivity
• Disaggregated compute and high-density network platforms
• Hyperscale cloud and HPC data center architectures
