QSFP112 800G SR8 AOC

Overview

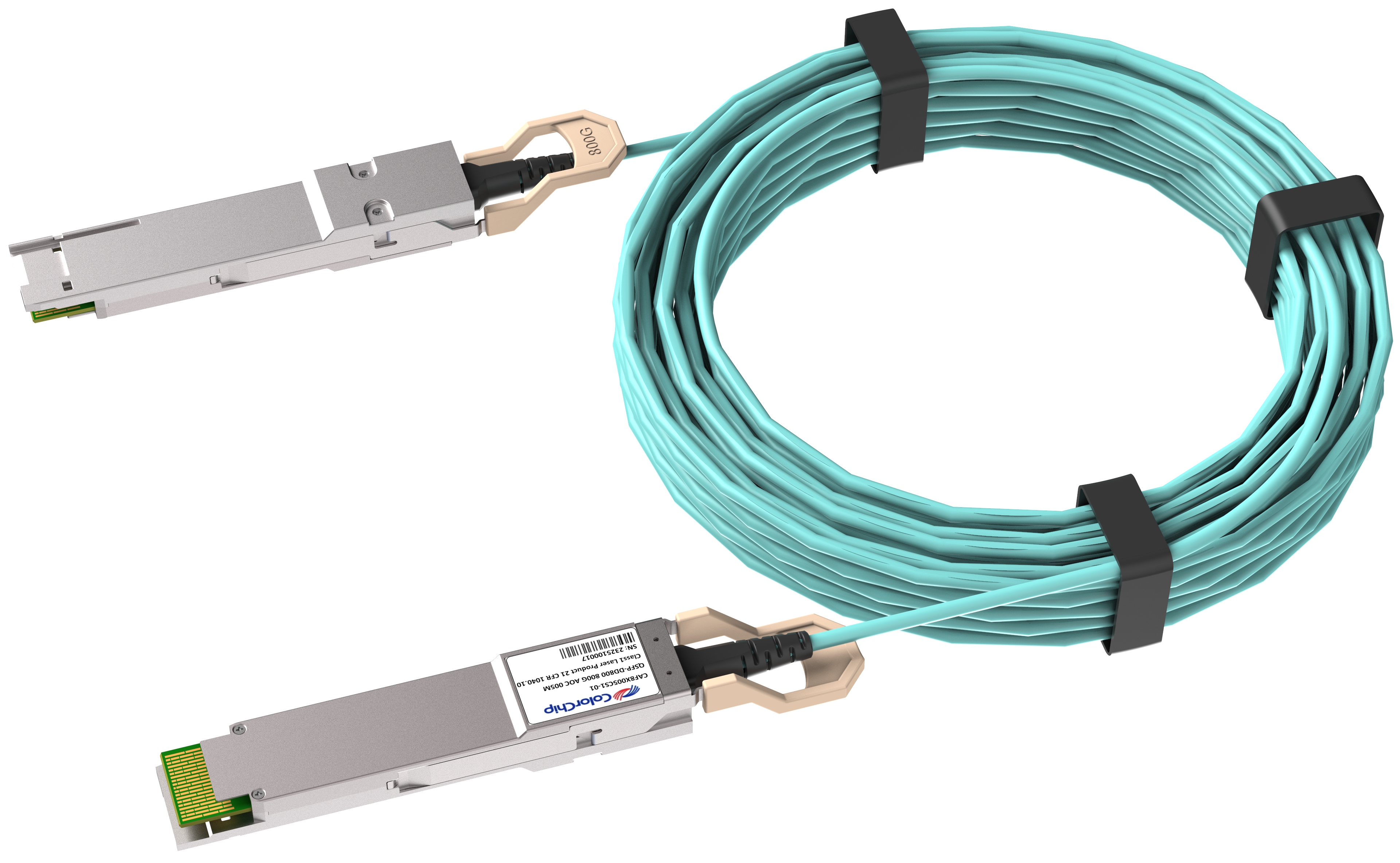

• The ColorChip 800G QSFP112 800G AOC is 2*8×100Gbps with multimode fiber connected, hot pluggable active optical cable. The either end module integrates 8 parallel lanes with 53.125GBd PAM4 modulation each lane.

Key Features

• Up to 106 Gbps data rate per channel by PAM4 modulation
• Support 800GAUI-8 electrical interface
• Integrated 850nm VCSEL array and PD array
• DDM function implemented
• Each side maximum power consumption 14W
• Hot-pluggable QSFP-DD form factor
• Case temperature range: 0 ~ 70℃
• Single +3.3V power supply
• RoHS 2.0 complaint

Applications

• Data centers and Cloud Networks
• Ethernet/Infiniband
• Enterprise Networking
