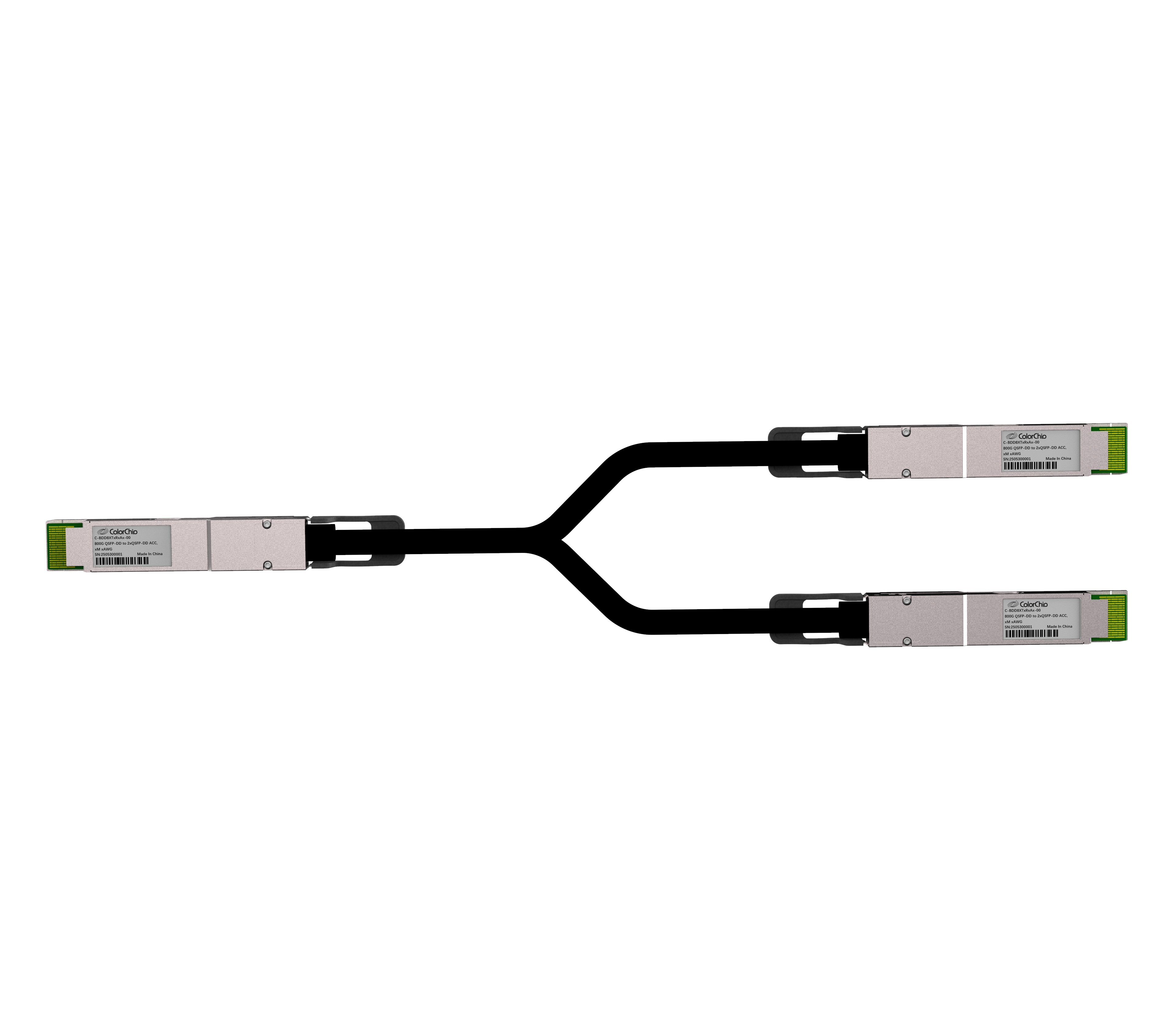

800G QSFP-DD to 2×QSFP-DD DAC & ACC

Overview

• ColorChip 800G QSFP-DD to 2×QSFP-DD DAC & ACC are designed for high-speed fan-out applications where a single 800G (8×100G PAM4) port must be split into two independent 400G (4×100G PAM4) links


Key Features

• Supports 800G → 2×400G breakout operation
• Based on 8×100G to 2x 8x50G PAM4 electrical lanes
• Compliant with QSFP-DD MSA and 400/800G Ethernet electrical interfaces
• Optimized construction to minimize insertion loss and crosstalk
• Fully hot-pluggable QSFP-DD connectors
• Customized cable braid termination limits EMI radiation
• Customizable EEPROM mapping for cable signature
• 26AWG and 30AWG cable
• Temperature Range: 0~ 70 °C
• 3.3V power supply

Applications

• 800G to 2×400G breakout connections in data centers
• AI/ML cluster interconnects (GPU/Accelerator fabric)
• High-density cloud, HPC, and hyperscale infrastructures
• Short-reach cost-optimized replacement for optical breakout modules
