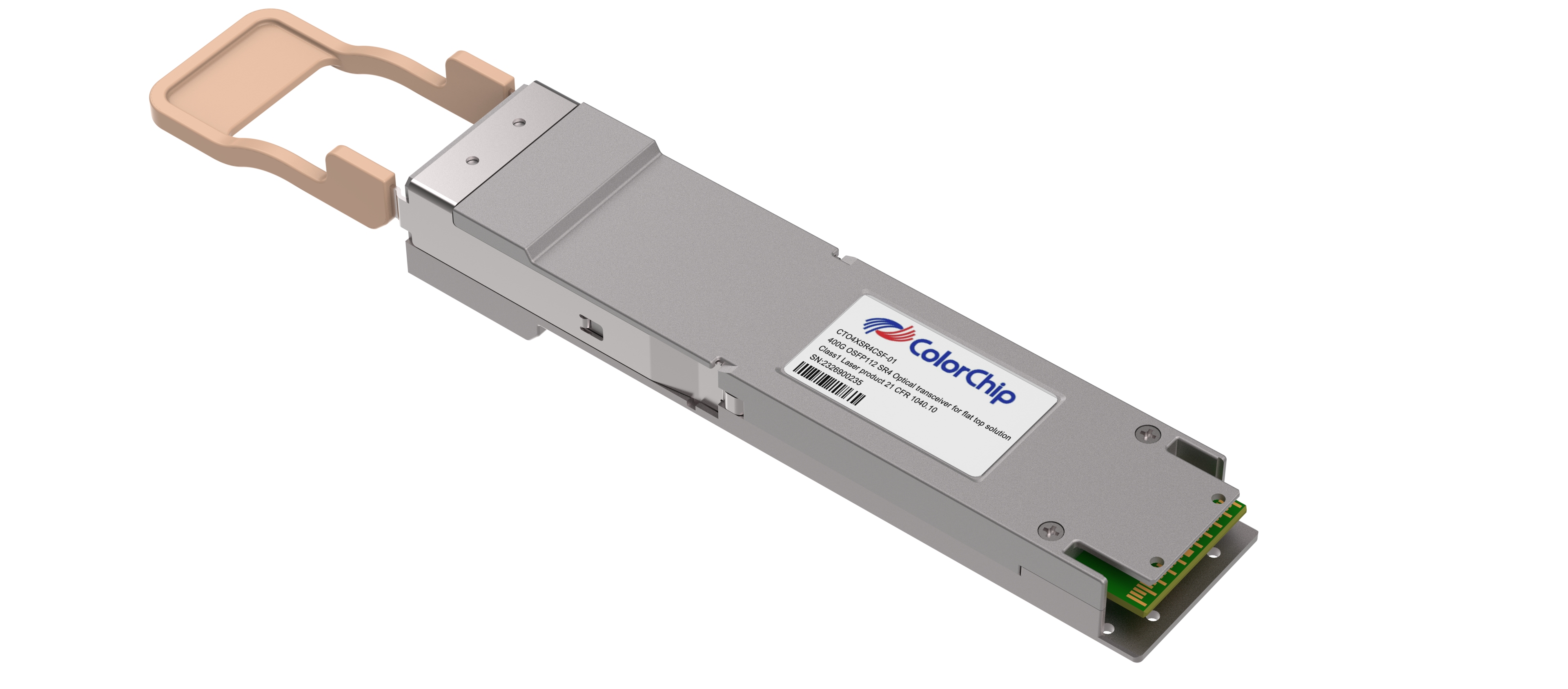

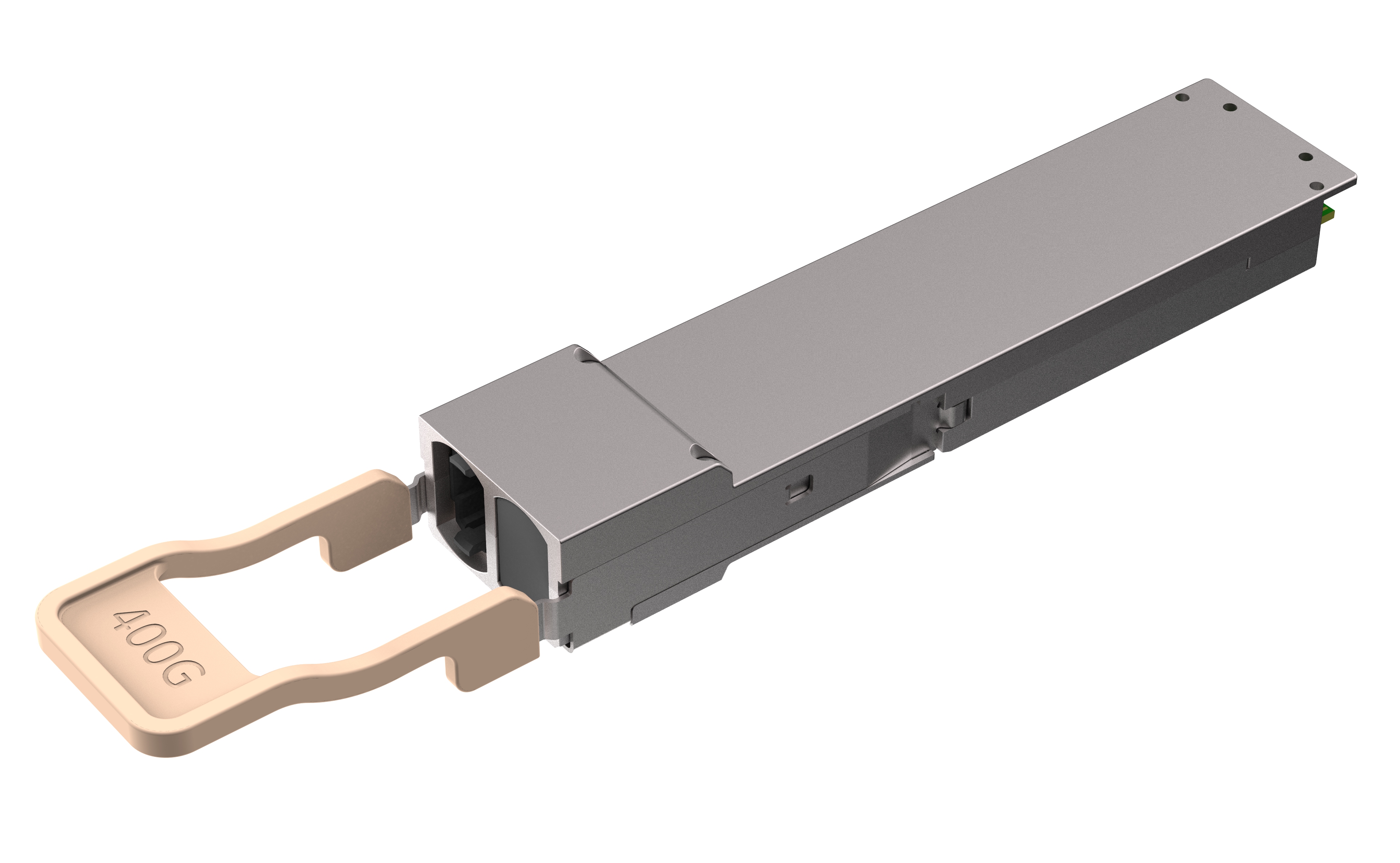

OSFP400 400G SR4

Overview

• This product is a 400Gb/s OSFP400 400G SR4 optical module designed for 100m optical communication applications. The module converts 4 channels of 100Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s.
• On the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 4 channels of 100Gb/s (PAM4) electrical output data.
• An optical fiber cable with an single MPO12-APC connector can be plugged into the OSFP400 400G SR4 module receptacle. Host FEC is required to support up to 100m fiber transmission.

Key Features

• Compliant to OSFP MSA 5.0
• Compliant with CMIS 4.0
• 4×106. 25Gb/s electrical interface (400GAUI-4)
• Maximum power consumption 9W
• Support 400GAUI-4 electrical interface
• Integrated 850nm VCSEL array and PD array
• Case temperature range: 0 ~ 70℃
• Single +3.3V power supply
• RoHS 2.0 complaint

Applications

• Data centers and Cloud Networks
• Ethernet/Infiniband
