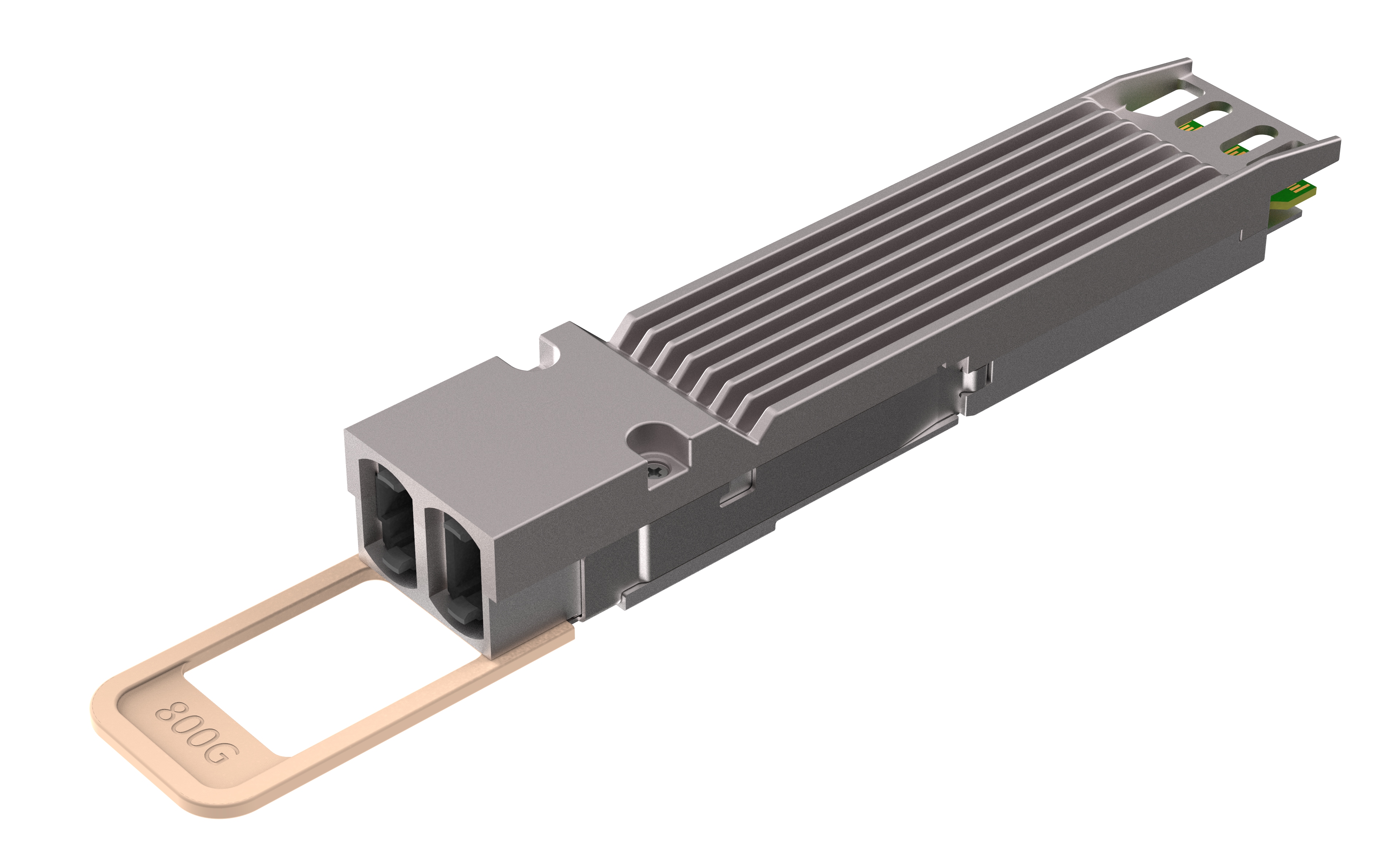

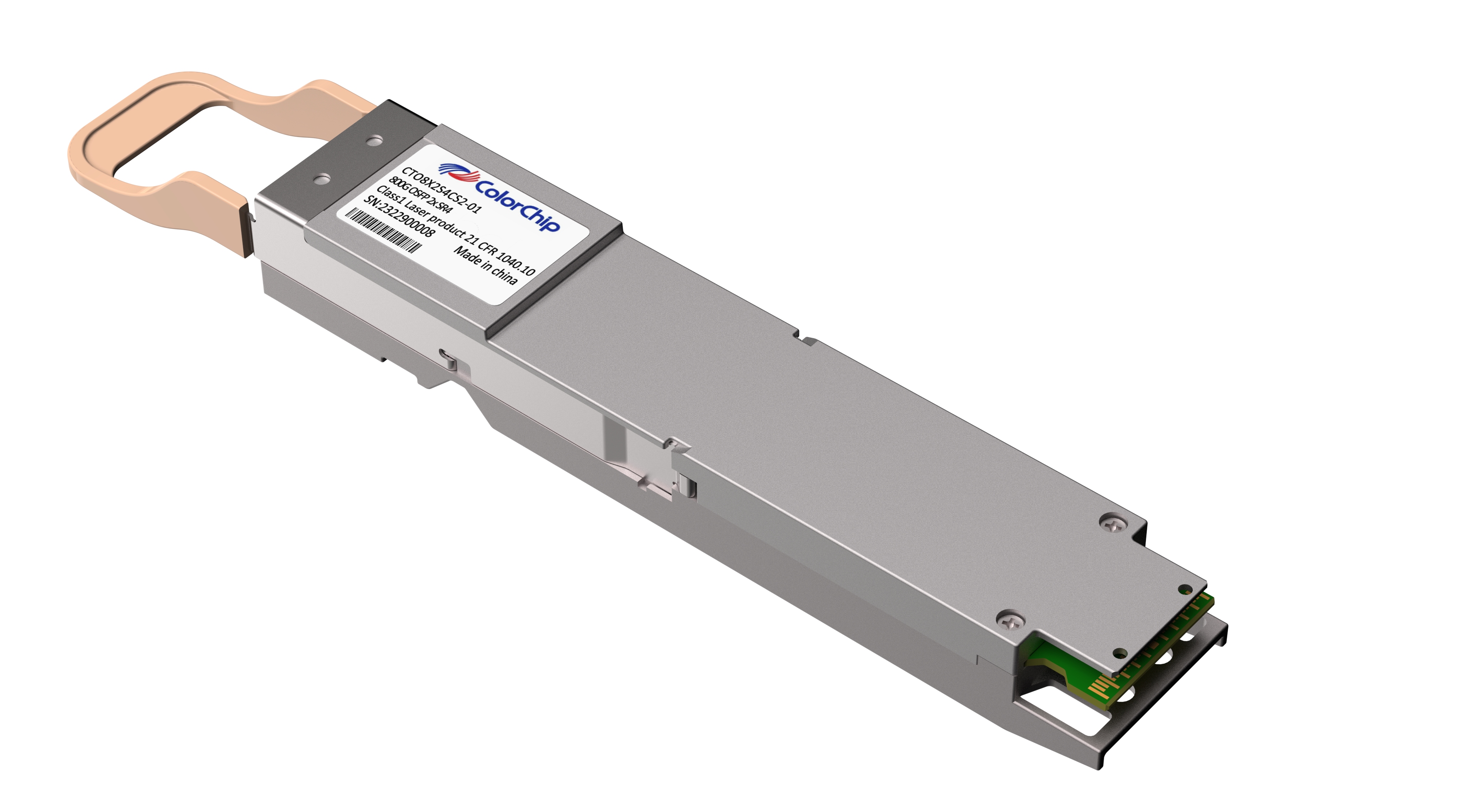

OSFP800 800G 2xSR4

Overview

• This product is a 800Gb/s OSFP800 2xSR4 optical module designed for 100m optical communication applications. The module converts 8 channels of 100Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 800Gb/s.
• On the receiver side, the module converts 8 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 800Gb/s into 8 channels of 100Gb/s (PAM4) electrical output data.
• An optical fiber cable with dual MPO12-APC connectors can be plugged into the OSFP 800G 2xSR4 module receptacle. Host FEC is required to support up to 100m fiber transmission.

Key Features

• Up to 106.25 Gb/s data rate per channel by PAM4 modulation
• Support 800GAUI-8 electrical interface
• Compliant to OSFP MSA 5.0
• Maximum power consumption 15W
• Case temperature range: 0 ~ 70℃
• Single +3.3V power supply
• RoHS 2.0 complaint

Applications

• 800G Ethernet/Infiniband
• Data Center Interconnect
