OSFP800 800G SR8 to 2xQSFP112 400G SR4

Overview

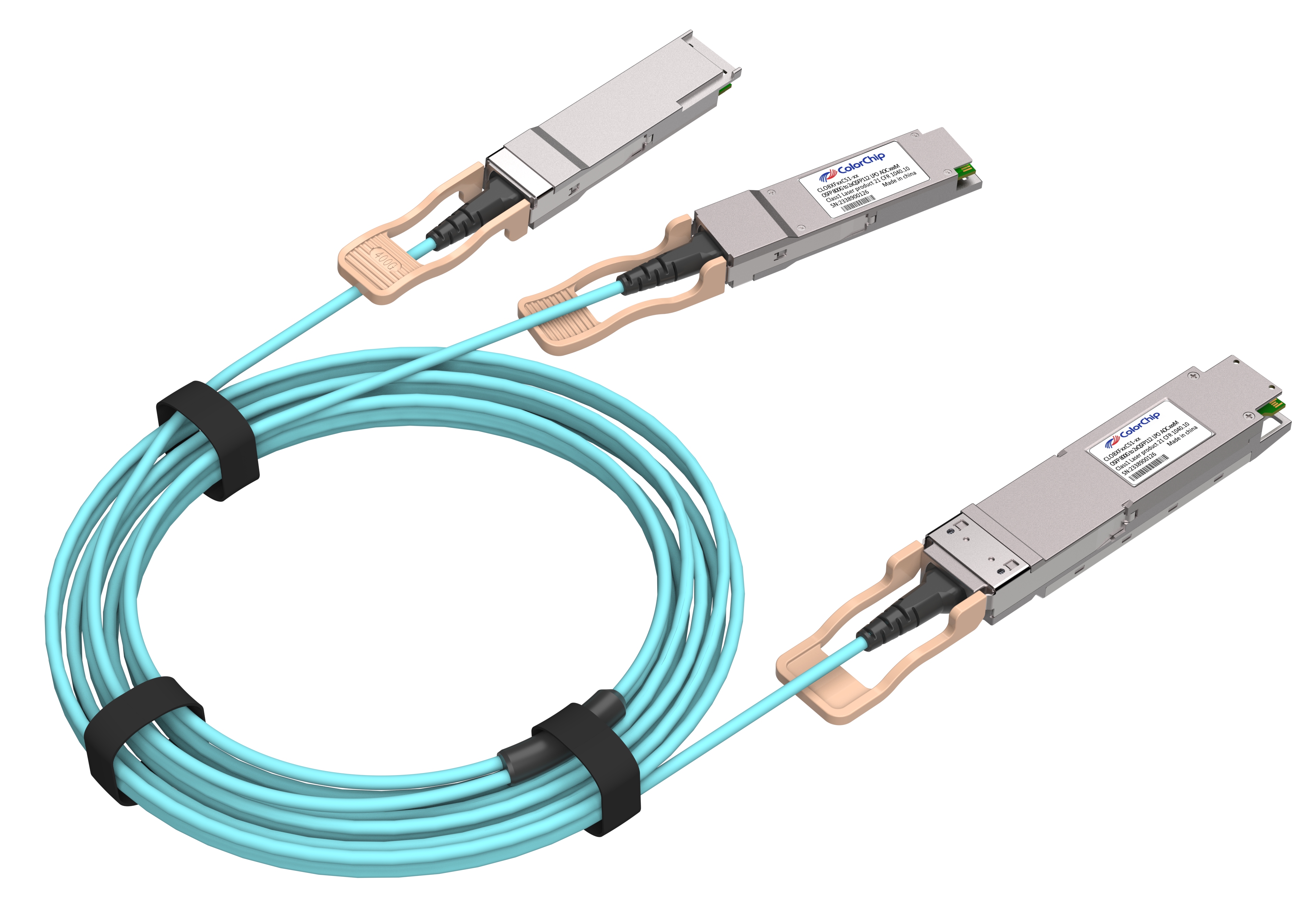

• The ColorChip OSFP800 800G SR8 to 2xQSFP112 400G SR4 AOC is 1* 8×106.25Gbps to 2* 2×106.25Gbps with multimode fiber connected each end, hot pluggable active optical cable. The module integrates eight parallel lanes on 800G end and four parallel lanes on each 200G end with 53.125GBd PAM4 modulation each lane.

Key Features

• Up to 106.25Gbps data rate per channel by PAM4 modulation
• Up to 60m with OM3 fiber
• Up to 100m with OM4 fiber
• Low power dissipation: <15W on OSFP800 800G end, <8W on QSFP112 400G end
• Commercial operating case temperature range: 0 ~ 70℃
• Compliant with OSFP800 800G MSA5.0/QSFP112 400G MSA 2.0
• Single +3.3V power supply
• RoHS 2.0 complaint

Applications

• 800G Ethernet/Infiniband
• Data Center Interconnect
